Insulated Glass,IGU,DGU
 Specification
Maximum size: 2500mm5000mm(except those made manually)
Width of aluminum spacer: 6mm, 9mm, 12mm, 15mm, 16mm
Glass unit thickness: Any combination between 3mm and 19mm
Quality Standard
It conforms to the national standard in GB/T11944-2002 Insulating Glass
It conforms to ASTME 2190-02 American standard


What's it?

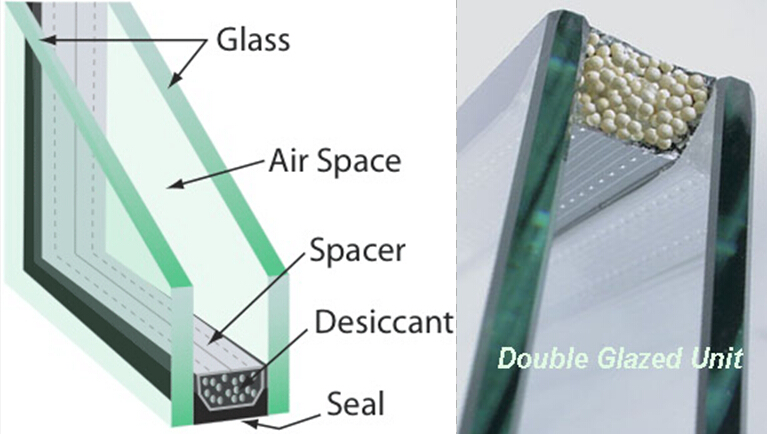

Insulated Glass Units (IGU) also named Double Glazing Units (DGU) ,which consist of two or more pieces of glass separated by
an airspace and an aluminium spacer around the edges, sealed to the perimeter in controlled conditions.

The spacer contains a desiccant (drying agent) which eliminates moisture vapour in the cavity.



Characteristics :

Reduction of air conditioning cost

Reduction of noise penetration

Prevention of dew condensation

Reduction of UV transmission

Shandong Glass Tech't  Advantage:

Shandong Glass Tech adopts Austrias LISEC automatic insulating glass production line. Its imported aluminum spacing frame relies on automatic bending technology for one step molding. The molecular sieve desiccant features pressure type auto-stuffing, automatic film removal, two-component sealing, and dual sealing, to ensure high sealing and low due point and prolong its service life.

Specification

Maximum size: 2500mm5000mm(except those made manually)

Width of aluminum spacer: 6mm, 9mm, 12mm, 15mm, 16mm

Glass unit thickness: Any combination between 3mm and 19mm


Quality Standard

It conforms to the national standard in GB/T11944-2002 Insulating Glass

It conforms to ASTME 2190-02 American standard



Application Field

It is widely used in various curtain walls, doors and windows, as well as indoor decorative partitions for buildings.






Time2015-9-13
